Iconic Modern Sliding Door Hardware that simply works.

INTRODUCING KROWN'S STANDARD ADJUSTABLE RAIL WITH TRU-LEVEL™ SYSTEM

WIGGLE ROOM

Behind Krown's innovative adjustable rail is their patent-pending Tru-Level™ System for a clean modern sliding barn door with no visible rail mounts. For doors up to 400 lbs.

Hidden inside Ragnar’s track is Krown's Tru-Level System™, giving a 1/4” of wiggle room in all directions. NOW AVAILABLE for all their systems.

Hidden inside Ragnar’s track is Krown's Tru-Level System™, giving a 1/4” of wiggle room in all directions. NOW AVAILABLE for all their systems.






Oregon-based, Krownlab, is constantly refining their already refined product line. Their focus on a limited line pays off in product that addresses often-heard frustrations, both functional and aesthetic. With their new easy-to-install track system they have brought their product to a level of simplicity in form and usability that makes it easy to recommend to projects of any size, from the laundry room door to the 300-room hotel. And now, with Rorik, the opportunity to provide shower enclosures makes their system a versatile choice throughout a project.


BALDUR

Krown's iconic hubless design

All BALDUR systems are available in Brushed Stainless Steel and Brushed Black Stainless Steel.

Maximum Door Weight : 400 lbs.*

*Maximum 300 lbs for thicker doors requiring the 1-1/4" track cantilever.

BALDUR : Face-Mounted

BALDUR : Top-Mounted

BALDUR : Glass-Mounted


ODEN

All ODEN systems are available in Brushed and Matte-Black finishes

Maximum Door Weight : 400 lbs.*

*As with BALDUR, maximum 300 lbs for thicker doors requiring the 1-1/4" track cantilever.

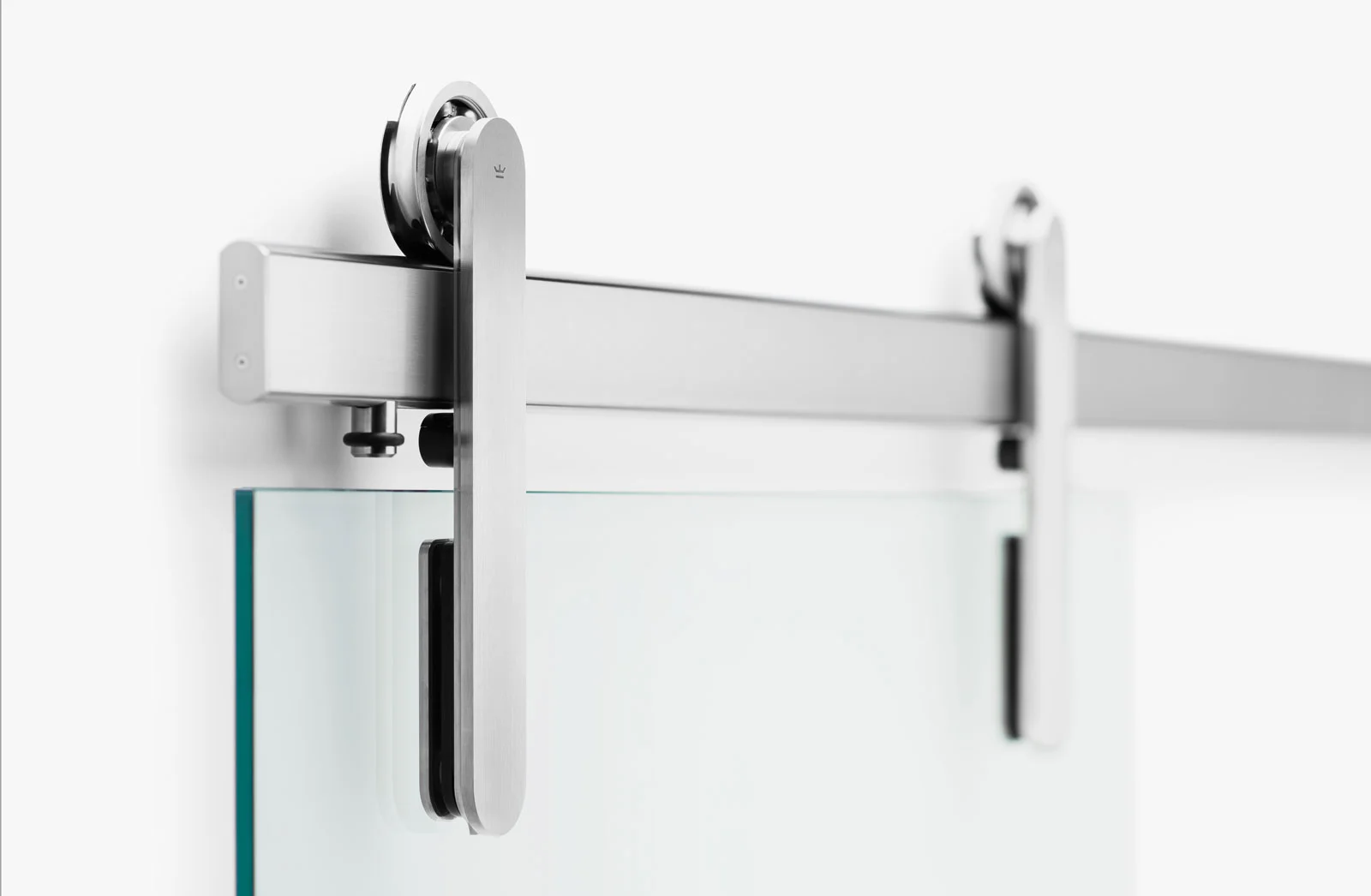

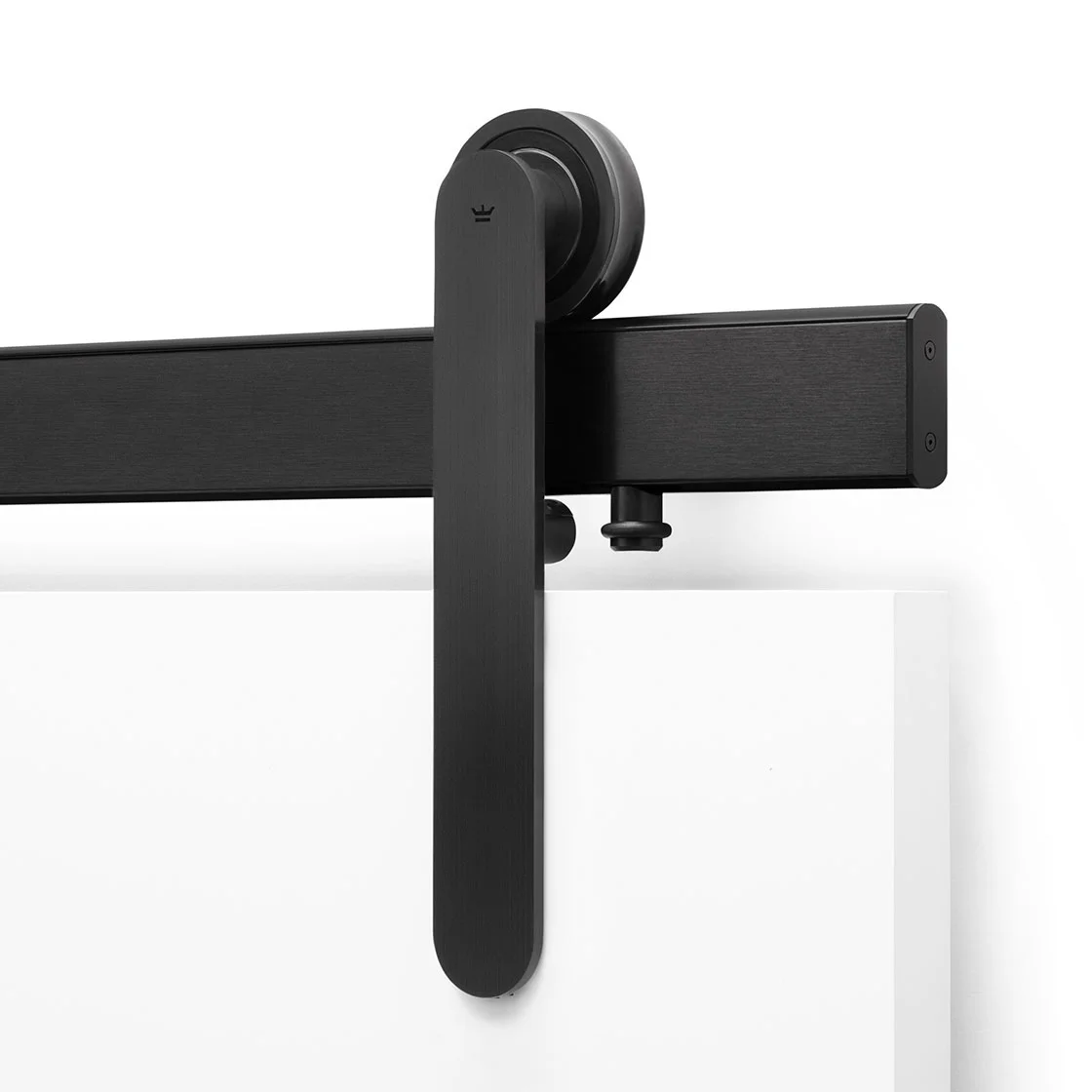

ODEN : Face-Mounted


ODEN : Top-Mounted


ODEN : Glass-Mounted


ABOUT ODEN :

ODEN sliding door systems are available in Brushed and Matte-Black finishes.

Maximum Door Weight : 400 lbs.*

Clean design with concealed fasteners. No bolts or visible rail mounts.

Unique Rail Design (Patent Pending) which allows for an up to 1/4" adjustment in all directions.

Field-adjustable Rail Stop allows for a hassle-free perfect fit.

Tested to over 400,000 cycles. 10-year warranty. *


RORIK

Easily the cleanest-looking system available for sliding glass shower enclosures.


RORIK FINISHES

RORIK FEATURES :

  • RORIK offers the Krownlab industry-leading 10-year warranty

  • ADA compliant pull force when system is fully loaded.

  • Configurable for 36" clear openings for roll-in entry. Perfect for hospitality and health-care projects.

  • For sliding panels ¼" to ½" thick weighing up to 150 lbs. Fixed panels can be 3/8"-1/2" thick.

  • Maximum 40" unsupported track spans possible

  • Tru-Leveling System for faster, precise installations. Built-in ¼" total adjustment in all directions at each track mounting point

  • Vertical panel adjustment. Adjust your panel up to ⅛" even after installation

  • Fully-adjustable door stops for fast and easy control of door travel

  • Compatible with framed tiled walls

  • Track ships standard at 78" length. Other lengths available. Easily cut and drill track in the field with commonly available tools

  • Configurable to have the moving panel close against the wall or with a return panel (Corner Configuration)

  • Available in Brushed Stainless and Matte-Black Stainless finishes

RORIK Shower System : Alcove Set Product Sheet

RORIK Shower System : Alcove Set Installation Instructions

RORIK Shower System : Corner Product Sheet

RORIK Shower System : Corner Installation Instructions

RORIK Shower System : CAD Glass Prep (dwg)


AXEL



Maximum Door Weight : 200 lbs.

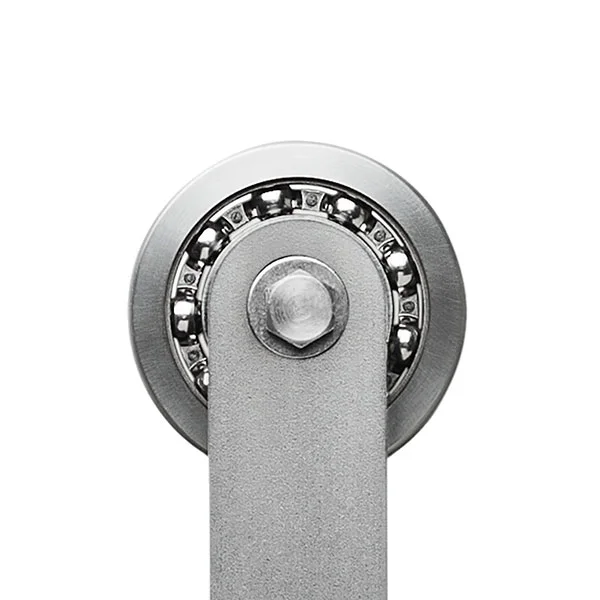

Made from 1/4" thick raw untouched carbon steel and Krown's premium black steel finish (not a painted finish) so you can cut Axel's three standard track lengths on site.

DOWNLOAD : AXEL CAD FILES PDF

DOWNLOAD : AXEL INSTALLATION INSTRUCTIONS


KROWNLAB ACCESSORIES



EBBA FLUSH PULL

DOWNLOAD : EBBA Flush Pull CAD FILES PDF

DOWNLOAD : EBBA Installation Instructions


KROWNLAB GALLERY
